Wichard Self-Locking Long D Shackle - Diameter 4mm - 5/32"
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$23.83
You save:
$4.20
Self-Locking Long D Shackle - Diameter 4mm - 5/32"
Features:
- Self-locking long shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications
- CE Marking and batch number
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 300
- Breaking load (lb) 1540
- Weight (lb) 0.018

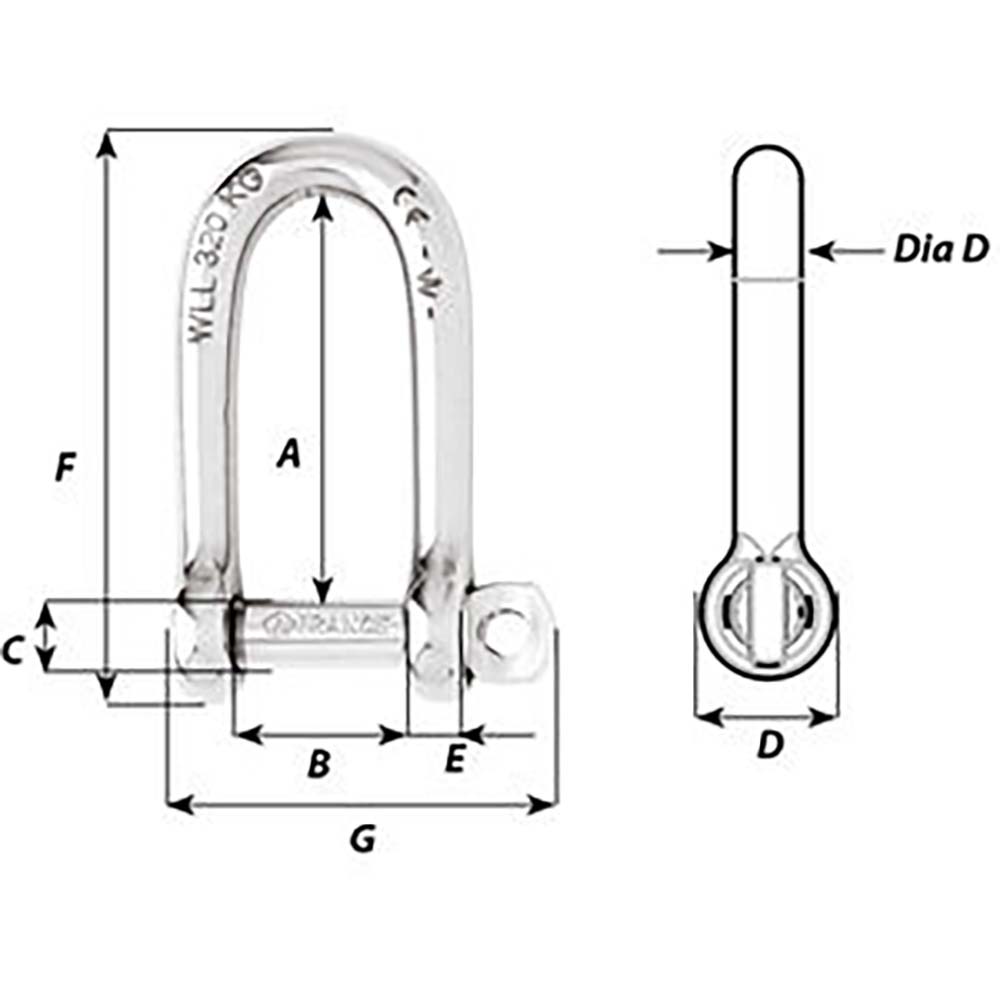

Dimensions (see 2nd image):
- A (inch) 55/64"
- B (inch) 5/16"
- C (inch) 5/32"
- D (inch) 5/16"
- D diameter (inch) 5/32"
- E (inch) 5/32"
- F (inch) 1-17/64"
- G (inch) 53/64"
Product Specifications
| Dimensions | 6" L × 2" W × 1" H |
|---|---|
| Shipping Weight | 0.1 lb |
